Quickshift switch (Clutchmaster switch)

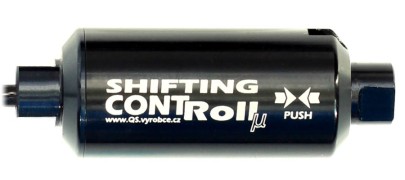

Quickshift switch push type.
Simple quickshift switch push type. It use mechanic microswitch inside. Two output wires. Lenght 60 mm. Diameter 20 mm. One end of sensor has thread M6 right, second end (near to cable) has both threads (right and left together). Material is high strength aluminium alloy with anodized surface. Weight 60 g. Cable lenght 110 cm. Switching force 140+-10 N. Water resistant. Compatible with all our unit.

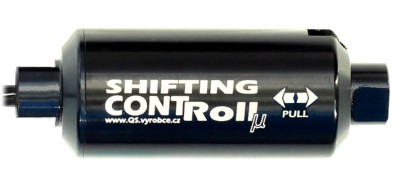

Quickshift switch pull type.
Simple quickshift switch pull type. It use mechanic microswitch inside. Two output wires. Lenght 54 mm. Diameter 20 mm. One end of sensor has thread M6 right, second end (near to cable) has both threads (right and left together). Material is high strength aluminium alloy with anodized surface. Weight 60 g. Cable lenght 110 cm. Switching force 140+-10 N. Water resistant. Compatible with all our unit.

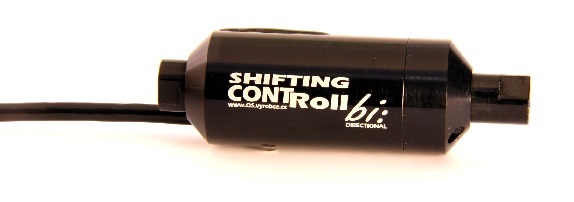

Quickshift switch bi-directional type.
Simple quickshift switch bi-directional type. It use two mechanic microswitch inside. Three output wires. Lenght 62 mm. Diameter 20 mm. One end of sensor has thread M6 right, second end (near to cable) has both threads (right and left together). Material dural. Weight 65 g. Cable lenght 110 cm. Switching force 140+-10 N. Water resistant. Compatible with all our unit.

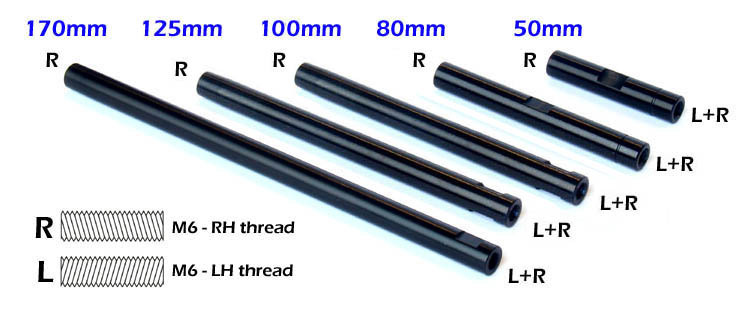

Quickshift coupling rods.
Shifitng rods are in 4 lenghts (50mm, 80mm, 125mm a 170mm) made from aluminium alloy with black anodizing. Diameter is 10 mm. The rod may be cut 15mm from both end or connected with other one to reach correct lenght. Rods 50mm and 80mm have Right hand thread M6 and Right+Left hand thread M6. Rods 125mm and 170mm have Right hand thread M6 and Left hand thread M6. Weight is 7g, 11g, 22g and 31g. Suitable srews and nuts for coupling to switch included.

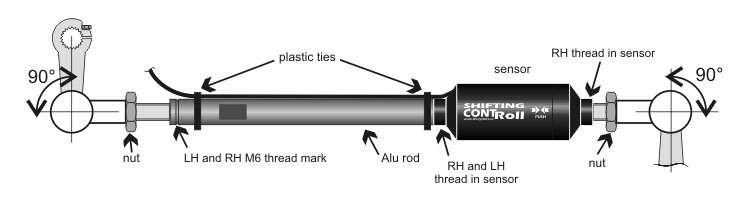

Here is picture for montage:


Producer: Shifting ContRoll.
